LockMaster 600KG Swing Gate Opener Auto Solar Power Electric Kit Remote Control

LockMaster 600KG Swing Gate Opener Auto Solar Power Electric Kit Remote Control

Metro Deals

Regular price $665.00 AUD
Regular price $983.99 AUD Sale price $665.00 AUD
Sale Sold out

If you find opening and closing your front gate is a hassle, then the Lockmaster Automatic Swing Gate Opener is just the thing you need. Designed to work with gates of up to 4.5m wide and each weighing 600kg, the automatic swing gate opener is operated by a powerful 24V 80W DC motor that runs off power from the mains. However, you can also use the supplied 20W polycrystalline solar panel to use solar power as backup. Two 12V 7Ah batteries are also supplied as further backup power. In essence, there is ample energy to work the gates in the event of any power outage. A manual release key is also included. Not least, the swing arms are made of high quality aluminium and designed for heavy duty performance as well. All components are housed in a weatherproof control box and two remote controls are provided that operate within a 30m range. There is also a stop and reverse mode with the controls. All necessary hardware for installation and an easy-to-follow set up manual and DVD are supplied together with your purchase.

Features
*600kg opening capacity per gate
*Width of gate up to 4.5m
*Two 12V 7AH backup batteries

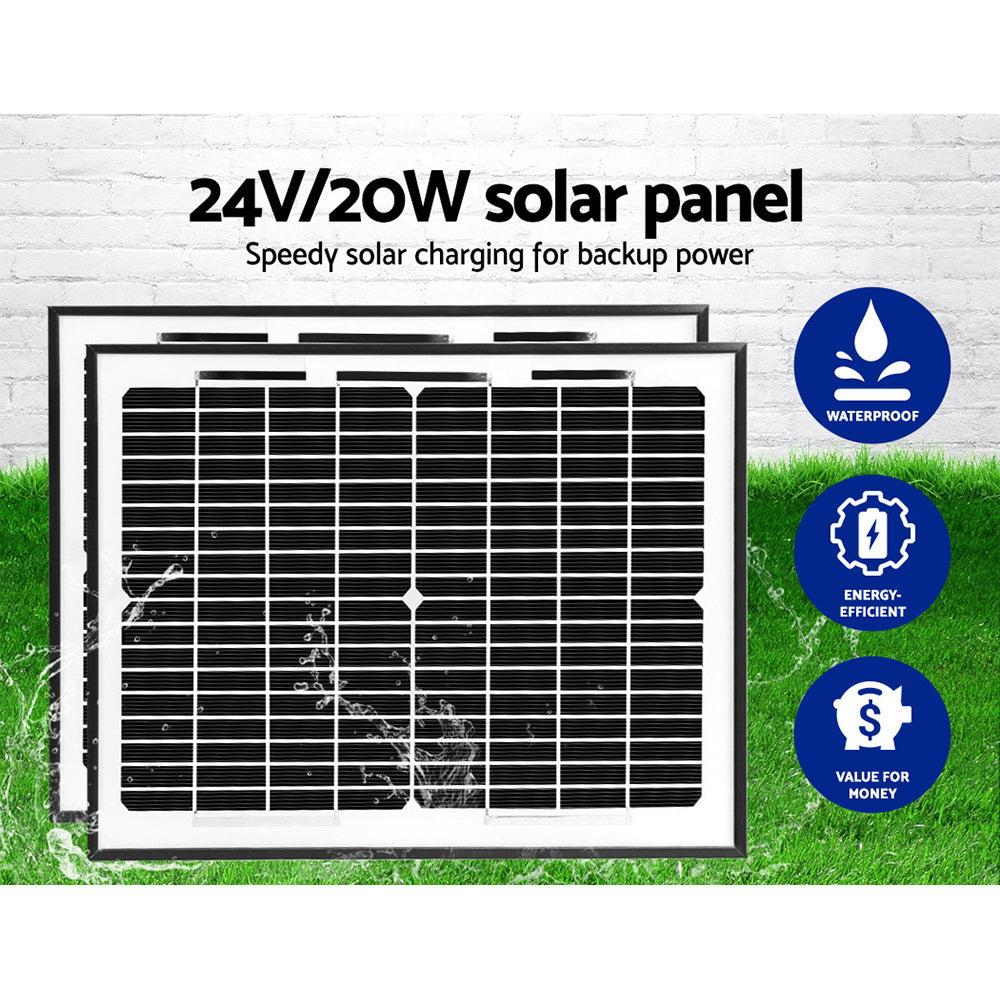

*20W Polycrystalline solar panel
*24V Low voltage system
*Low power consumption

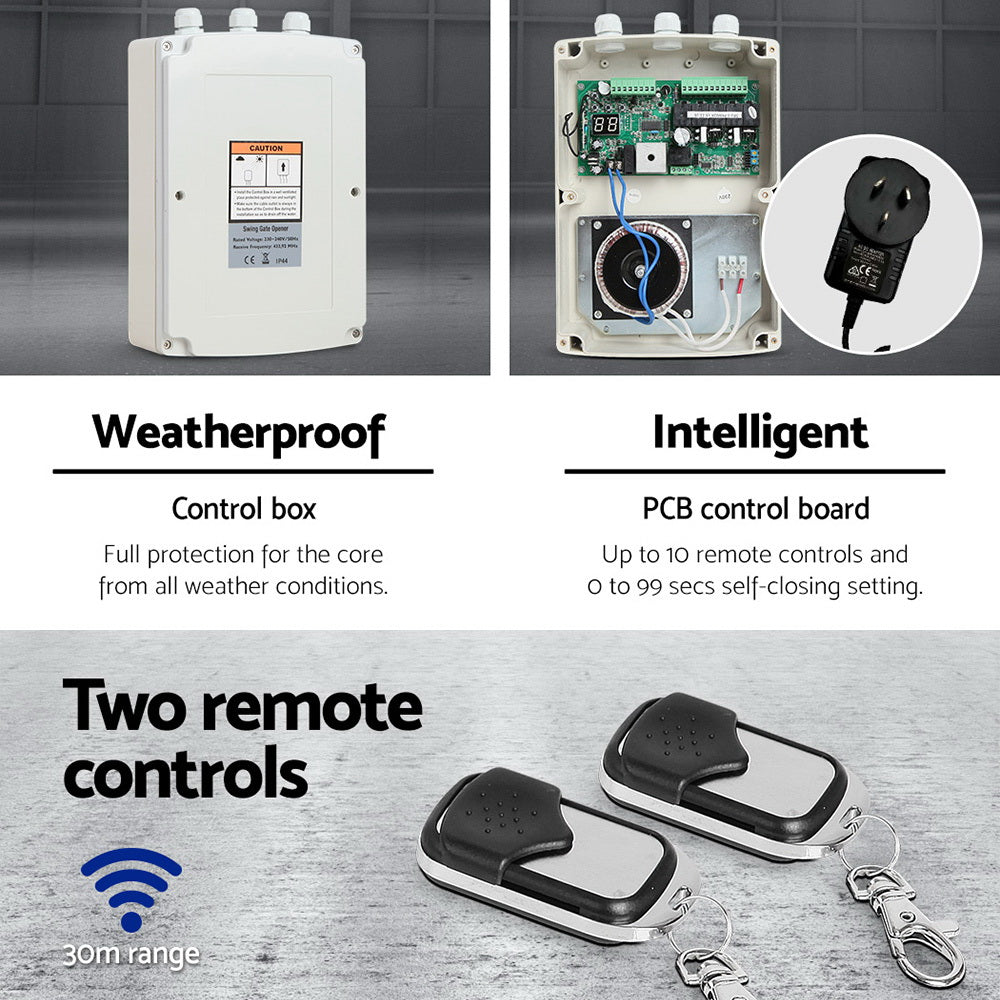

*Waterproof and dustproof control box
*High quality aluminium swing arm
*Stop and reverse mode for obstruction
*Emergency release key
*Two remote controls with 30m operation range
*Full user manual and DVD included
*Installation hardware

Specifications
*Voltage: DC 24V
*Input: 230V/ 50Hz or 120V/60Hz
*Power: 80W/ arm
*Max weight gate: 600kg
*Max width gate: 4.5m
*Current: 3A
*Actuator speed: 16mm/s
*Actuator travel: 385mm
*Protection class: IP44
*Power supply: Electric / Solar energy
*Assembly Required: Yes
*Backup battery: 2x 12v 12AH AGM Batteries
*Remote control battery: Alkaline zinc manganese battery 12V 27A

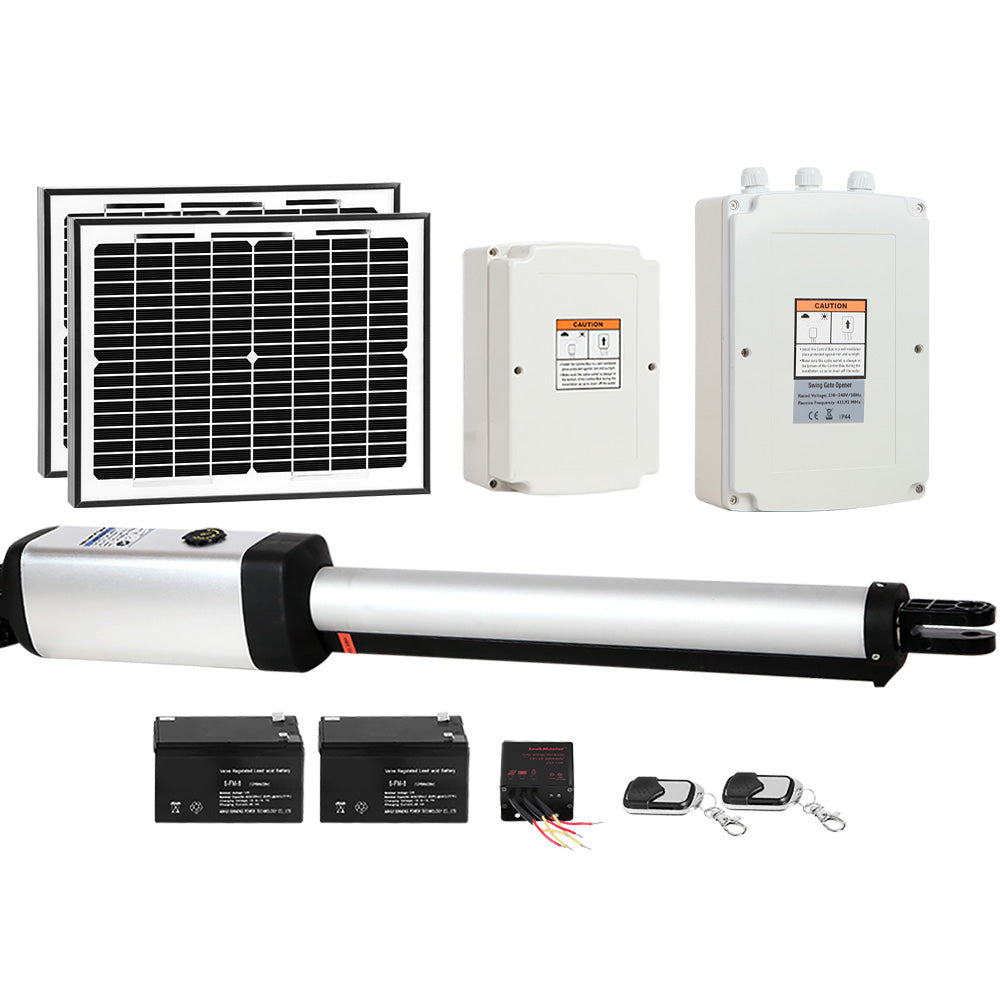

Package Contents
1 x Swing Arm
2 x Remote Control
1 x Control Box
2 x Solar Panel
2 x Battery
1 set x Installation Accessories
1 x User Manual
